Description

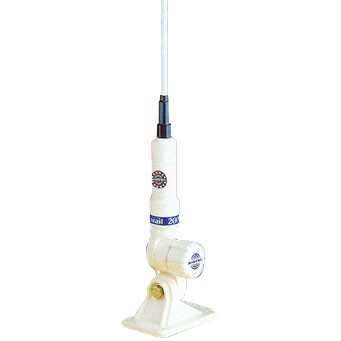

CR2000 ANTENNE CB MARINE
Features:
– CB & 10m Marine antenna
– Designed to work without Ground Plane
– Perfect protection against the worst weather conditions
– Supplied with white coaxial cable RG-58 C/U directly connected
– Stainless steel hardware
– High quality white fiberglass conic whip
– 180° inclination and adjustable whip
Electrical Data
– Type: CB base loaded
– Center Frequency: 27.185 MHz
– Impedance: 50 Ω
– Radiation (H-plane): 360° omnidirectional
– Polarization: linear vertical
– Bandwidth @ SWR ≤ 2: ≥ 5600 KHz (500 channel)
– SWR @ res. freq.: ≤ 1.2
– Max. power:
15 Watts (CW) continuous
50 Watts (CW) short time
– Feed system / Position: Transformer DC-ground / base
– Cable length / Type: 5 m / white RG 58
– Standard mount: “M-8” NY
Mechanical Data
– Materials: Nylon, Fiberglass, Chromed brass
– Height (approx.): 1505 mm
– Weight (approx.): 720 gr
